• -160,00 €

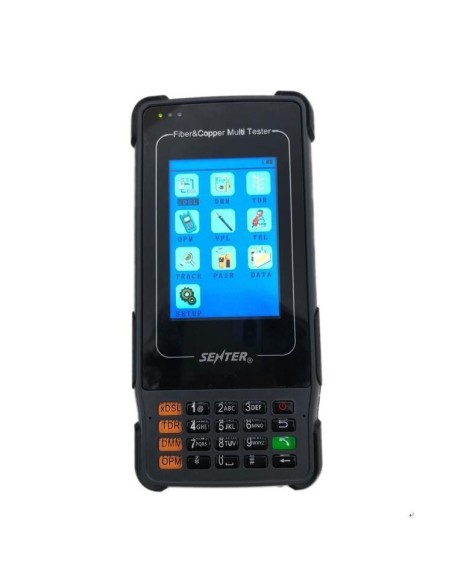

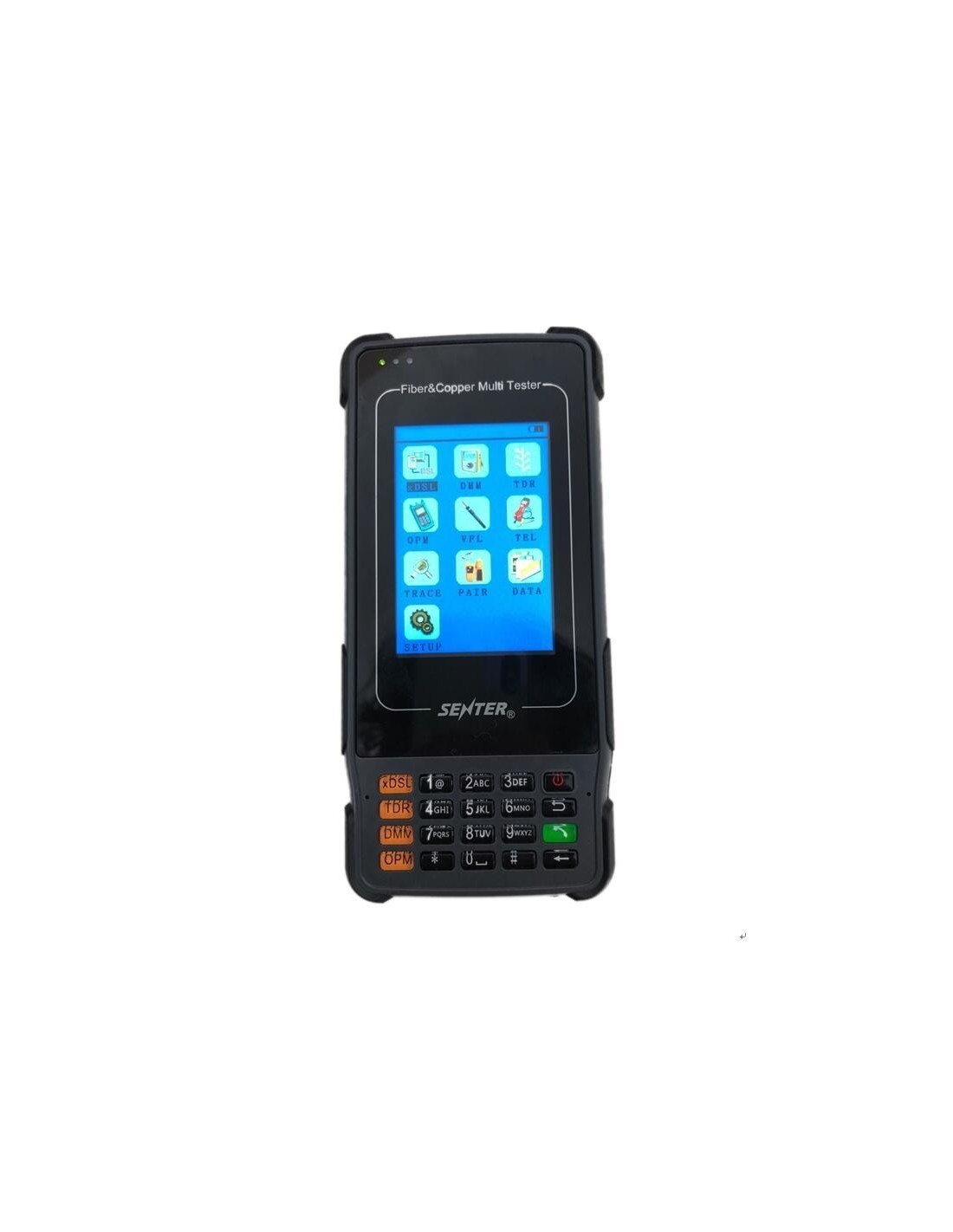

Smartphone industriale
zoom_out_map
Risparmia 160,00 €

Smartphone industriale

Smartphone industriale con VDSL tester,

VFL,

Power Meter,

Ecometro,

Multimetro,

Telefono di prova,

Cercacoppie,

Lettore di codici a barre, GPSTC600 -

Profilo 17a (100 Mbit/s),

Profilo 30a (200 Mbit/s),

Profilo 35b (300 Mbit/s)

730,00 €
890,00 €
Tasse escluse
Quantità

Contattaci

phone Hotline +39-3479202437
(Disponibile Lunedi - Venerdi 09:00 - 19:00)

emailEmail: info@faritalyshop.com

Tempi di consegna

local_shippingGli ordini verranno evasi in 5 giorno lavorativi, utilizzando GLS come corriere.

Spedizione gratuita per ordini superiore ai 400€+iva

Policy

verified_user100% pagamento sicuro

settings_backup_restore100% soddisfatti o rimborsati

TC600 è un palmare intelligente, è stato appositamente progettato per operazioni e applicazioni nelle Telecomunicazioni. Adotta il tradizionale sistema operativo Android 4.1.2 JB, che combina Insieme Smartphone industriale, funzioni di test di telecomunicazione come tester ADSL /VDSL2, misuratore di potenza ottica (Power Meter), VFL Cercacoppie, lettore codice a barre e posizione GPS in un unico apparecchio.Completo di Borsa, software, batterie e alimentatore.

xDSL Index

xDSL test main functions

Physical Layer Info
PPPoP Dial
FTP Client, Fixative IP
Network Layer Test
Modem Emulation
PING
Support VLAN,HLOG,QLN
Error Code Statistics
Bit Graph Display
BPT /SNR Data
Modem Parameter Setting(VPI/VCI)

ADSL Index

Standards

ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL.

Attenuation:

0~63.5dB

Noise margin

0~32dB

Upstream Channel Rate (interweaved / fast mode)

0~1.2Mbps

Downstream Channel Rate (interweaved / fast mode)

0~24Mbps

The modulating bits in the DMT sub-channel

0~15 and each sub-channels' frequency points

The number of error codes

CRC, HEC, FEC, NCD, OCD

Other Parameters

The output power of DSL

It can display every condition of the DSL line: lost signal and shutdown of link

VDSL2 Index

Standards

ITU G.993.2(VDSL2).Be compatible with ADSL2+, ADSL standard.

Upstream Channel Rate (interweaved / fast mode)

0-100M

Downstream Channel Rate (interweaved / fast mode)

0-100M

The modulating bits in the DMT sub-channel

0~15 and each sub-channels' frequency points

The number of error codes

CRC, HEC, FEC, NCD, OCD

Other Parameters

The output power of DSL
It can display every condition of the DSL line: lost signal and shutdown of link
DSLAM information
Error seconds
INP pulse protection
SNR channel figure
Channel noise margin figure

Support profiles:

Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a 35a

DMM Test Index

DC Voltage

-400 to 400 V; Resolution: 0.1V

AC Voltage

0 to 290 V

Capacitance

0 to 1000nF; Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF

Loop Resistance

0 to 20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2%

Insulation Resistance

0 to 50MΩ; Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ

TDR Index

General specifications

Check line mix and break fault.

Auto and manual distance test

Test Range

8km(4km,16km,32km is optional)

Highest resolution

1m

Dead Zone

0m

Power consumption

1W

VOP Adjusting range

100-300 m/us

Distance test accuracy

≤1m

Pulse test voltage range

≥30V

Cable Tracking Index

Test cable type

Network cable, twisted pair cable, telephone line, USB cable, coaxial cable.

Line status test

Determine open or short circuit

Voltage polarity detection

Positive and negative of DC voltage

Distance of signal transmission

No less than 3km

DC Voltage

No more than 48V

Check Line Sequence Index

Function

Support generate network line signal to view the network check line sequence with the receiver

Feature

Easy to operate: determine the line sequence by receiving side lights order

Optical Power Index

Wavelength range(nm)

800~1700

Photosensing material

InGaAs

Power test range(dBm)

-70~+10 or -50~+26

Error range

±5%

Display distinguishability

Linear display: 0.1%;logarithmic display: 0.01 dBm

 Adapters

FC, ST, SC

VFL Index

VFL

FP-LD

Wavelength

650nm±20nm

Output power

1mw/3mw/5mw/10mw (optional)

Connector

2.5mm universal adapter(SC, FC, ST)

Working mode

CW or 2Hz modulation

Applicable fiber

SM / MM

SR-SE-ST600
